1.4539 (X1NiCrMoCu25-20-5) Material Data Sheet

Back to category page

1.4539 (X1NiCrMoCu25-20-5) directly from stock & cut to your required dimensions!

International identifiers
AISI 904L, AFNOR Z2NCDU25-20, SIS 2562, SS2562, 0H22N24M4TCu
Scopes

Material 1.4539 is a stainless, super austenitic nickel-chromium-molybdenum-copper steel, resistant to various organic and inorganic acids. The high-alloy stainless steel 1.4539 is also seawater resistant and has a high pitting resistance. Areas of application are the construction industry, the chemical and medical industry.

The 1.4539 is also known under the classification AISI 906L​​​​​.

Characteristics

Weldability:      good

Machinability:  5 (1 = poor - 10 = good)

Corrosion class:   5 (0 = weak - 5 = good)



Calculate the weight of the required material quickly »

Chemical composition
1.4539
X1NiCrMoCu25-20-5
CSiMnPSCrMoNiV
min.     19,04,024,0
max.0,02    21,05,026,0
1.4539
X1NiCrMoCu25-20-5
AlCuNNbTiSonstiges
min.   1,2
max.   2,0
In stock

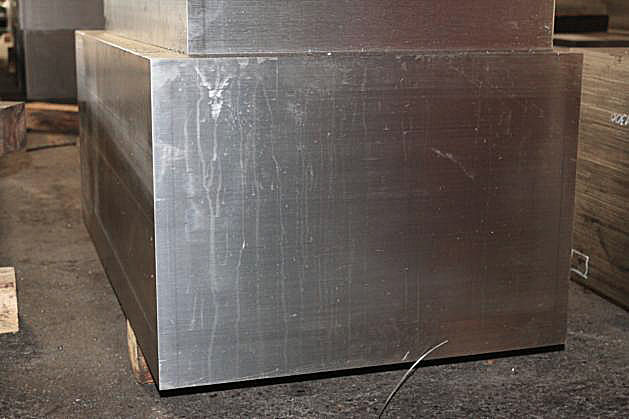

flat, forged, quenched and tempered, pre-machined

Stahlblock

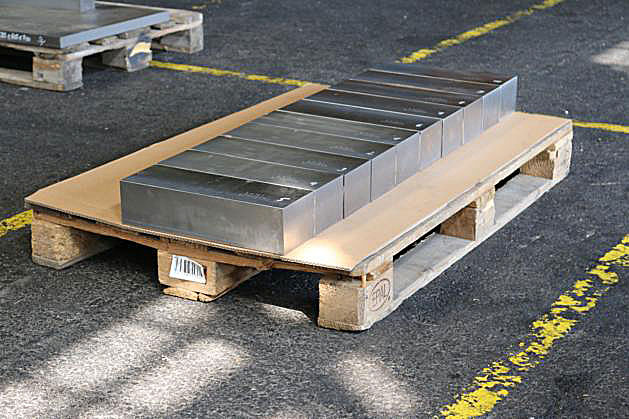

Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.



Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Your contact person Silvia Schubert+49 (0) 35263-665-36+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
