1.4021 (X20Cr13) Material Data Sheet

Back to category page

1.4021 (X20Cr13) directly from stock & cut to your required dimensions

International identifiers
AISI420, UNS S42000, AFNOR Z20C13, BS 420S37, BS 420S29, UNI X20Cr13, SS 2303, JIS SUS420J1, JIS SUS420J1, JIS SUS 420J1, GOST 20Ch13, GB 2Cr13
Scopes

1.4021 is a corrosion and acid resistant martensitic chromium steel with good corrosion resistance in moderately corrosive, chloride-free media, such as organic acids, soaps and solvents.

1.4021 is popularly known as AISI 420​​​​​.



Main application in mechanical engineering, petroleum and petrochemical industry, hydraulic industry.

Characteristics

Weldability:         good

Machinability:      5 (1 = very bad - 10 = good)

Polishability:        yes

Corrosion class:  1 (0 = weak - 5 = good)



Calculate the weight of the required material quickly »

Chemical composition
1.4021
X20Cr13
CSiMnPSCrMoNiV
min.0,16    12,0
max.0,251,01,50,040,0214,0
In stock

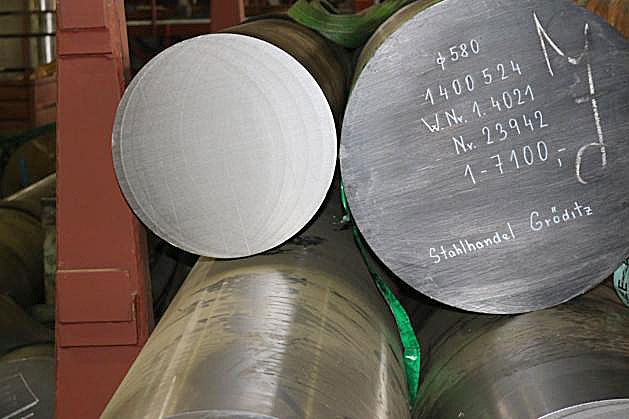

Round, forged, quenched and tempered, machined

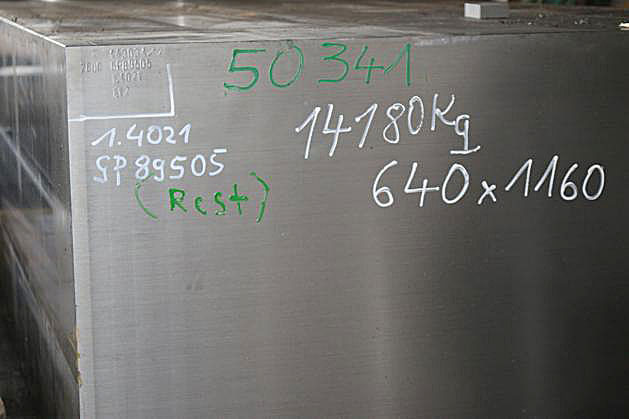

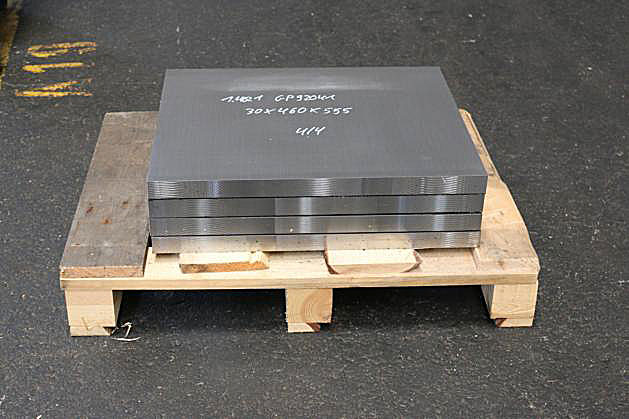

Flat, forged, quenched and tempered

StahlblockRundstahl
Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting. Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.

This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

The most important questions and answers about the material 1.4021:

Ist 1.4021 Edelstahl?

1.4021 ist ein hochlegierter, korrosionsbeständiger Edelstahl.

Kann 1.4021 rosten?

1.4021 ist ein korrosionsbeständiger Werkstoff durch den Chromgehalt > 12%, kann jedoch unter bestimmten Umgebungseinflüssen auch rosten.

Welche Härte hat 1.4021?

Der Härtebereich beim Material 1.4021 liegt von 220 bis 299 HB.

Ist 1.4021 legiert?

1.4021 ist eine Eisen-Kohlenstoffstahllegierung mit einem Legierungsgehalt von über 12% Chrom.

Ist 1.4021 magnetisch?

1.4021 ist ein ferromagnetischer Werkstoff, also magnetisierbar.

Welche Dichte hat 1.4021?

Die Dichte vom 1.4021 beträgt 7,70 bis 7,80 kg/cm², je nach genauer Zusammensetzung.

Welche Temperaturbeständigkeit hat 1.4021?

Der Stahlwerkstoff 1.4021 kann bis 400°C eingesetzt werden.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Sarah Spauschus

Your contact person Sarah Spauschus+49 (0) 35263-665-30

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
