1.4401 (X5CrNiMo17-12-2) solution- annealed and quenched

Back to category page

1.4401 (X5CrNiMo17-12-2) directly from stock & cut to your required dimensions!

International identifiers
AISI 316, SS 2347, UNS S31600, AFNOR Z7CND17-11-02, BS 316S16, UNI X5CrNiMo1712, JIS SUS316, GOST 0Cr17Ni12Mo2, GB 08Ch27N13M2
Scopes

1.4401 is an austenitic stainless chromium-nickel-molybdenum steel Due to the addition of 2 to 2.5% molybdenum the corrosion resistance from 1.4401 compared to standard austenitic grades 1.4301 and 1.4307 is much better.

1.4401 is well suited for machining! Due to the molybdenum content 1.4401 has a good resistance in chloride-containing media and non-oxidizing acids. But 1.4401* in welded condition is not resistant to intergranular corrosion! Best corrosion resistance is achieved with polished surface. This material is comparable to 1.4404.

1.4401 is popularly known as AISI 316.


It is mainly used in the chemical industry, food industry, petroleum industry, petrochemical industry, engineering, for decorative applications and kitchen utensils.

Characteristics

Weldability:         medium*

Machinability:     6 (1 = bad - 10 = good)

Polishing:            yes

Corrosion class:  4 (0 = weak - 5 = good)



Calculate the weight of the required material quickly »

Chemical composition
1.4401
X2CrNiMo17-12-2
CSiMnPSCrMoNiV
min.     16,52,210,0
max.0,071,02,00,0450,01518,52,513,0
1.4401
X2CrNiMo17-12-2
AlCuNNbTiSonstiges
min.
max.      0,11
In stock

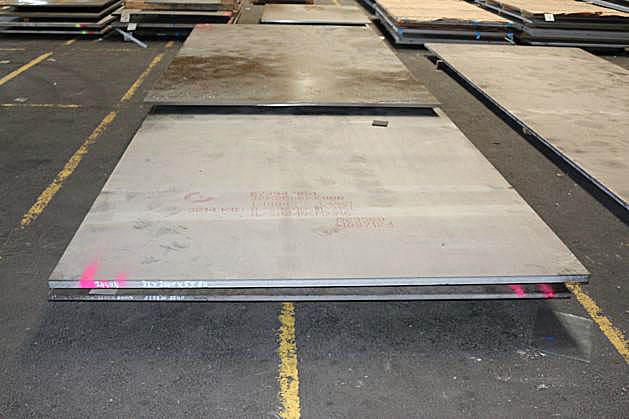

Plates, rolled
Flat, forged

StahlblechStahlblock
Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Heidi Sommer

Your contact person Heidi Sommer+49 (0) 35263-665-33+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
