AISI 304 | 1.4307 (X2CrNi18-9) Material Data Sheet

Back to category page

1.4307 (X2CrNi18-9) directly from stock & cut to your required dimensions!

International identifiers
AISI 304L, SIS2333, DUS304, Z4CN1910FF
Scopes

1.4307 is an austenitic chromium-nickel steel. Due to the low carbon content, the solidification tendency is reduced, which benefits the machinability. It has good corrosion resistance in natural environment. This stainless steel is resistant to intercrystalline corrosion and can be processed well.

The chemical composition and properties are comparable with the material 1.4301.



Application areas

The material 1.4307 is used in the following areas: automotive industry, construction industry, chemical industry, oil industry/ petrochemical industry, aerospace and mechanical engineering.

1.4307 is also known under the classification AISI 304L.

Characteristics
Weldabilityexcellent
Machinabilitymedium  (1 = schlecht - 10 = gut)
Polishingyes
Malleabilitywell
Corrosion classgood (0 = schwach - 5 = gut)
Magnetisabilitylow




Forging: The material is heated to 1.150°C - 1.180°C. Between 1.180°C and 950°C, the forging process takes place. If no distortion is to be feared, the material is rapidly cooled after the forging process in air or in water.


Welding: 1.4307 is suitable for welding with or without welding consumables. After welding no heat treatment is required. Welding influences the corrosion resistance.


Corrosion resistance: The formation of chromium carbides is excluded because of the low carbon content. Resistance to intergranular corrosion is given. In the absence of salt and chlorine concentrations, good corrosion resistance is present in natural environmental media.


Cold forming: This material is suitable for cold massive forming.


Heat treatment

 Temperature in °CCooling
Hot forming1.200 - 900Air

Heat treatment
Solution annealing (+AT)1.000 - 1.100Water, Air


Processing:

Cold forming      is possible
Spent processingis possible
Cold divingis possible
Free-form and drop forgingis possible
Polishingis possible


Special features:

  • Usable up to 550°C

  • Suitability for low temperatures

  • Magnetic properties μr ≤ 1,3

  • Can be polished

Physical Properties:

Density in kg/dm37,9
Electrical resistance at 20°C in (Ω mm2)/m 0,73
Thermal conductivity at 20°C in W/(m K)15
Specific heat capacity at 20°C in J/(kg K)500



Calculate the weight of the required material quickly »

Chemical composition
1.4307
X2CrNi18-9
CSiMnPSCrMoNiV
min.     17,0 8,0
max.0,03    19,5 10,5
In stock

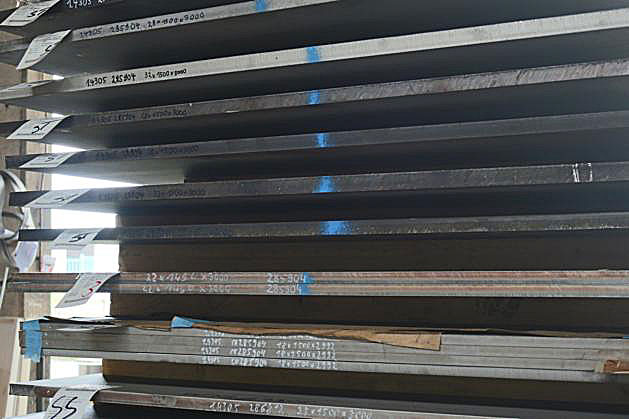

plate, rolled, solution annealed

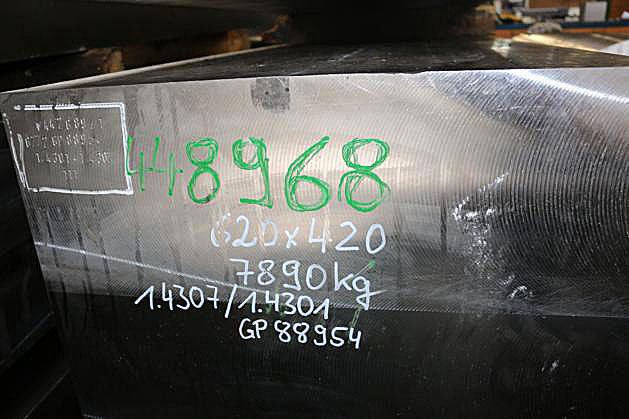

flat, forged, solution annealed

StahlblechStahlblock

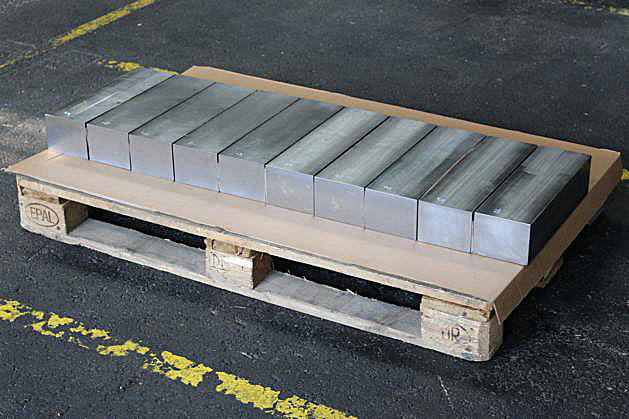

Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Your contact person Silvia Schubert+49 (0) 35263-665-36+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
