1.4903 (X10CrMoVNb9-1) quenched and tempered

Back to category page

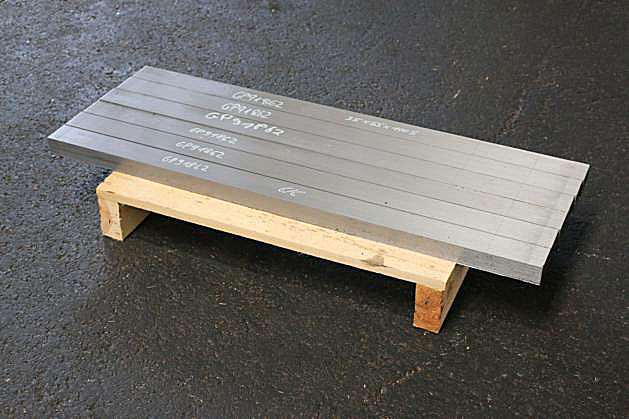

1.4903 (X10CrMoVNb9-1) quenched and tempered directly from stock & cut to your required dimensions!

International identifiers
ASTM A182 (F91) | ASTM A336 | UNS K90901
Scopes

1.4903 is a high-temperature resistant, martensitic (structure of heat-treatable material used) high-alloyed chromium-molybdenum-steel, which is used for mixed-pressure turbine elements by improved properties compared with common steel (10CrMo9-10). With its higher amount of  chrome and molybdenum together with nitrogen (0,03-0,07%) and vanadium (> 0,18 %) it is possible to substitute nickel it still work at more than 500°C in permanent load.

1.4903 is defined with the material designation type F91 according to ASTM Standard.

1.4903 normally delivery condition +QT:

 +QT
Tensile strength (Rm)620 - 850 N/mm2 (Rm)
Hardness acc. to Brinell200 - 248 HB



Mechanical properties at room temperature:

Rp0,2AZKV
N/mm2%%J
≥ 450≥ 20≥ 40≥ 68



Field of application

The main fields of application of this stainless steel are typically power engineering (turbines). Advantages in these application are its properties like creep rupture behavior and proof stress at elevated temperature, and additional the behavior of the Modulus of Elasticity at elevated temperatures, and the sum of these properties with permanent load.

That´s why it is also used in power plants, general engineering, energy industry, boiler (steam boiler, boiler parts, boiler drums) and for pressure vessels in apparatus.

Characteristics
Weldabilitygood
Polishingis possible
Machinability:4 (1 = not good - 10 = good)
Corrosion resistance 0 - 52 (0 = poor - 5 = good)


Welding: Parts made of 1.4903 steel can readily be welded using any of the standard welding methods.

After welding the material must be subsequent stress annealed at a temperature between 20 – 40 Kelvin (appr. 700°C) below of tempering temperatures.

Machining: The machinability of this quenched and tempered steel is directly related to its real properties after heat treatment. The best approach is to use a cutting speed at (30-50 [m/min] only.

The high-alloyed state needs a very good cooling for cutting tools (to meet good service life).


Heat treatment

The heat treatment that apply to 1.4903 steel is solution annealing: Heat to 1040 to 1100°C and subsequent cooling by oil quenching. Tempering temperature and time at temperature primarily depend on desired final hardness (730-780°C mostly). Before welding on bigger section thickness it is recommend, too.

 TemperatureCooling
Hot forming1200°C - 1100°CAir
Heat treatment
Quenched and Tempered (+QT)1040°C - 1100°COil
 730°C - 780°C (>1h dwell time)


Processing

Cold formingnot common
Cold upsettingnot common
Free-form and drop forgingis possible
Machiningpossible



Physical properties:

Density (kg/dm3)7,75
Electrical resistivity at 20°C (Ω mm2 /m)0,50
Thermal conductivity at 20°C (W/m K)26
Thermal conductivity at 500°C (W/m K)30
Specific heat capacity at 20°C (J/kg K)430
Specific heat capacity at 500°C (J/kg K)680
Modulus of Elasticity at 20°C (GPa)218
Modulus of Elasticity at 500°C (GPa)180


Special properties:

  • preferential used at temperatures from 300°C to > 600°C

  • magnetisable

Calculate the weight of the required material quickly »

Chemical composition
1.4903
X10CrMoVNb9-1
CSiMnPSCrMoNiV
min.0,080,200,30  8,00,85   0,18
max.0,120,500,600,020,019,51,050,40,25
1.4903
X10CrMoVNb9-1
AlCuNNbTiSonstiges
min.         0,06
max.         0,10
In stock

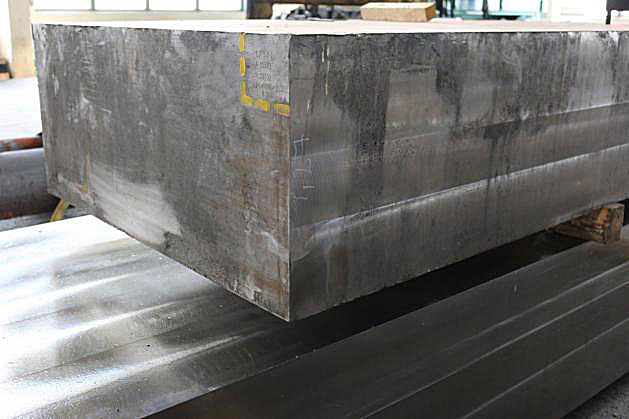

Flat, forged, quenched and tempered

Stahlblock
Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.

This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Heidi Sommer

Your contact person Heidi Sommer+49 (0) 35263-665-33+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
