1.4571 (X6CrNiMoTi17-12-2) Material Data Sheet

Back to category page

1.4571 (X6CrNiMoTi17-12-2) Material Data Sheet

International identifiers
AFNOR Z6CNDT17-12, AISI 316 Ti, SS2242, H17N13M2T, H18N10MT
Scopes

1.4571 is a stainless, austenitic chromium-nickel-molybdenum steel stabilized with titanium. When high temperature strengths are required, the 1.4571 is used as an alternative than for example the material 1.4404.

It is characterized by its good corrosion resistance in most natural waters (urban and industrial), provided that the concentrations of chloride, hydrochloric and hydrochloric acid are not too high.

Intercrystalline corrosion resistance is superior to titanium unstabilized steels because the titanium addition prevents the precipitation of chromium carbides in the grain boundaries.

After welding, no heat treatment is required due to the low carbon content.

1.4571 is also known under the classification AISI 316Ti.



Application areas

This steel is used in apparatus construction and shipbuilding, in the construction industry, the chemical industry, in mechanical engineering, in the medical industry and in the pharmaceutical industry.

In the food industry, 1.4571 is also used for the transport and storage of food.

1.4571 Material Data Sheet

Characteristics
Weldabilityexcellent
Machinabilitymedium  4 (1 = schlecht - 10 = gut)
Polishingnot possible
Corrosion resistancegood
Corrosion class4 (0 = schwach - 5 = gut)
Magnetisabilitylow


Forging: During forging, preheating takes place between 1.150°C and 1.180°C. Thereafter, the material can be forged at 1.180°C and 950°C. The subsequent cooling takes place in water.

Welding: 1.4571 can be welded by all common methods. No welding filler is required for this and no heat treatment is necessary after welding. A temperature of 200°C should not exceed the interpass temperature.

Corrosion resistance: At low to medium concentration of chlorides, salts and hydrochloric acid as well as organic acids the 1.4571 shows good corrosion resistance. Even after welding, there is resistance to intergranular corrosion.

Machining: Tool wear during machining is increased by alloying titanium.


Heat treatment

 Temperature in °CCooling
Hot forming1.200 - 900Air


Heat treatment


Solution annealing (+AT)1.020 - 1.120Water, Air


Processing:

Cold forming           is possible
Spent processingis possible
Cold divingis possible
Free-form and drop forgingis possible


Special features:

  • Usable up to 550°C

  • Suitability for low temperatures

  • Magnetic properties μr ≤ 1,3

  • Very good weldable

Physical Properties:

Density in kg/dm38,0
Electrical resistance at 20°C in (Ω mm2)/m 0,75
Thermal conductivity at 20°C in W/(m K)15
Specific heat capacity at 20°C in J/(kg K)500



Calculate the weight of the required material quickly »

Chemical composition
1.4571
X6CrNiMoTi17-12-2
CSiMnPSCrMoNiV
min.     16,52,010,5
max.0,08120,0450,0318,52,513,5
1.4571
X6CrNiMoTi17-12-2
AlCuNNbTiSonstiges
min.            5xC
max.            0,7

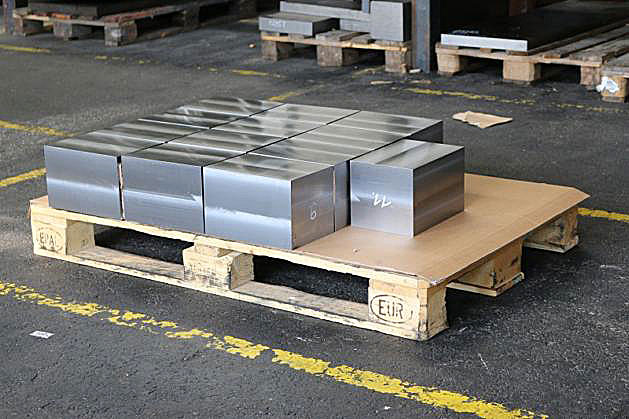

In stock

Flat, forged, quenched and tempered

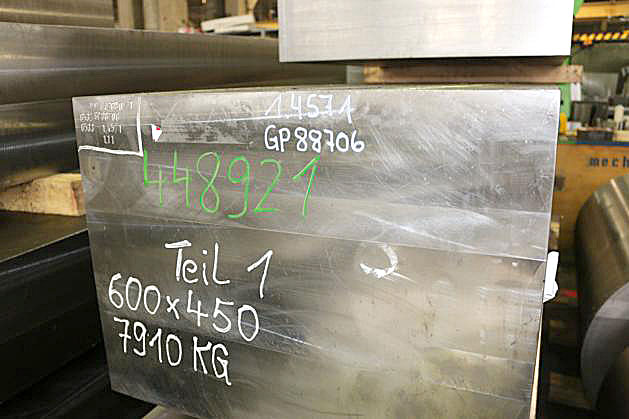

Stahlblock
Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Your contact person Silvia Schubert+49 (0) 35263-665-36+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
