1.4550 (X6CrNiNb18-10) Material Data Sheet

Back to category page

1.4550 (X6CrNiNb18-10) directly from stock & cut to your required dimensions!

International identifiers
S34700, AISI347, SS2338, 0H18N12Nb
Scopes

Apparatus construction and food industry, chemical industry, petrochemical sector, soap industry, film & photographic industry.

1.4550 is popularly known as AISI 347​​​​​​​​​​​​​​.



Characteristics

Weldability: well

solution annealed and quenched
Rm min. 500 N/mm², Rp0,2 min 240 N/mm²



Calculate the weight of the required material quickly »

Chemical composition
1.4550
X6CrNiNb18-10
CSiMnPSCrMoNiV
min.     17,0 9,0
max.0,081,02,00,0450,1519,0 12,0
1.4550
X6CrNiNb18-10
AlCuNNbTiSonstiges
min.         10xC
max.         1,0
In stock

Flat, forged, solution annealed and quenched, pre-machined

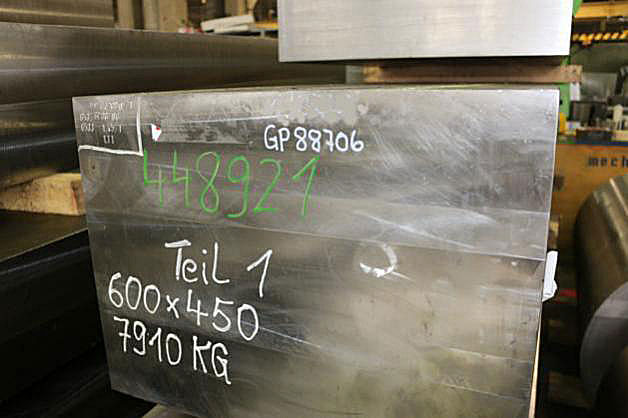

Stahlblock

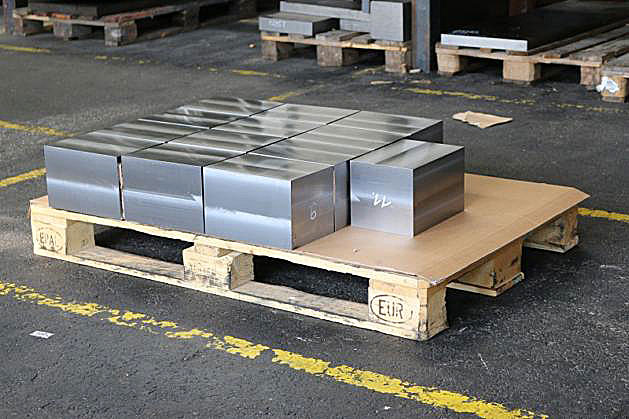

Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Yoseli Gättner

Your contact person Yoseli Gättner+49 (0) 35263-665-19+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
