1.4404 VIM (X2CrNiMo17-12-2) Material Data Sheet

Back to category page

1.4404 (AISI 316L) with an extra degree of purity

International identifiers
EN 10088-3, UNS S31600, ASTM A182, A276, A479, AISI 316L, BS 316S11
Scopes

The material 1.4404 VIM, has an improved degree of purity, due to the Vacuum Induction Melting (VIM) process.

Due to the extra degree of purity and the composition of the alloying elements, the material is very resistant to organic (formic acid) and inorganic acids (nitric / sulfuric acid). The resistance to intergranular corrosion is particularly good in aggressive media.


Application area

This super-pure material is used in energy technology (e.g. for nuclear applications), in the aviation industry, in the food industry (e.g. for fittings and systems) and in the medical sector.


Grit

The stainless steel 1.4404 (AISI 316L) is vacuum induction melted and has a more homogeneous volume and surface structure compared to conventionally manufactured steels. The additional re-melting process reduces the non-metallic impurities (see table).

Non-metallic inclusions acc. ASTM E 45 (Method A) average value, SEMI F20-0706:

ThickThin
ABCDABCD
0,50,7501,1800,501,0

Grain size determination of the material 1.4404 (AISI 316L) according to the ASTM E 112 standard.


Characteristics

1.4404 VIM properties:

Weldabilitygood, without PWHT
Machinability4  (1 = bad - 10 = good)
Polishabilityyes
Corrosion resistanceExcellent
Forgeability

Medium

Mechanical propertiesgood
Impact work                     at -70° Celcius over 250 joules

Special features:

Can be used in the temperature range up to 550 ° C
Can be polished well
Amagnetic quality (μr <1.01)

Physical Properties:

Density in kg/dm³8,0
Thermal conductivity at 20°C in W/(m K)15
Electrical resistance at 20°C (Ω mm2 /m)0,75
Specific heat capacity at 20°C (J/kg K)500


Heat treatment

 Temperature in °CCooling
Hot forming1200 - 900air, water

Heat treatment
Solution heat treatment (+AT)1020 - 1120water, air



Forging: before forging, the steel should be heated to 1150°C and 1180°C. The forging process takes place at 1180°C to 900°C with subsequent rapid air or water cooling. Post-treatment of the surface using pickling is recommended.


Welding: 1.4404 steel can be welded with all methods (TIG welding; MAG solid wire, arc welding, SAW welding). The inter-pass temperature should remain below 200°C and a downstream heat treatment (PWHT) is not required.


Cold forming: due to the high work hardening, higher forming forces are required.


Corrosion resistance: the corrosion resistance is increased compared to conventional chrome-nickel-molybdenum steels and the resistance against intergranular corrosion is given.


Machining: due to the high alloy content, machining is more difficult than with bulk steel grades. High-quality high-speed steel or carbide should be used here.


Processing:

Cold formingis possible
Cold headingis possible
Open-die and closed-die forgingis possible
Machiningpossible with caution
Machine processingnot possible


Calculate the weight of the required material quickly »


Chemical composition
1.4404 VIM
X2CrNiMo17-12-2
CSiMnPSCrMoNiV
min.     16,52,010,0
max.0,0301,02,00,0450,03018,53,014,0
1.4404 VIM
X2CrNiMo17-12-2

AlCuNNbTiCo
min.
max. 0,300,11
In stock

Flat, forged, solution annealed, quenched, outsourced

Stahlblock

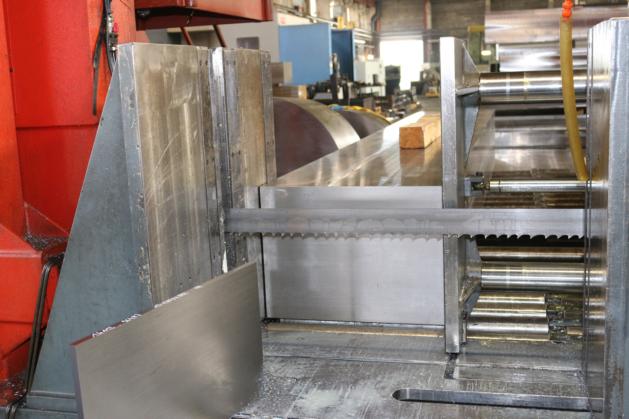

Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.

This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Heidi Sommer

Your contact person Heidi Sommer+49 (0) 35263-665-33+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
