1.4028 (X30Cr13) Material Data Sheet

Back to category page

1.4028 (X30Cr13) directly from stock & cut to your required dimensions!

International identifiers
AISI 420, JIS SUH309, EN X15CrNiSi20-12, AFNOR Z15CNS20.12, UNS S42020

1.4028 is a stainless martensitic chromium steel. A higher carbon content is 1.4028 more hardenable than 1.4021. Good corrosion resistance in moderately aggressive, chlorine-free media, organic acids, soaps and solvents.

1.4028 is popularly known as AISI 420​​​​​.

Main applications: automotive industry, electronic equipment, machine, pump and valve components, cutlery industry.


Weldability:       medium

Machinability:   5 (1 = very bad - 10 = good)

Polishability:     yes

Corrosion class: 3 (0 = weak - 5 = good)


Calculate the weight of the required material quickly »

Chemical composition
min.0,26    12,0
max.0,35   0,01514,0
In stock

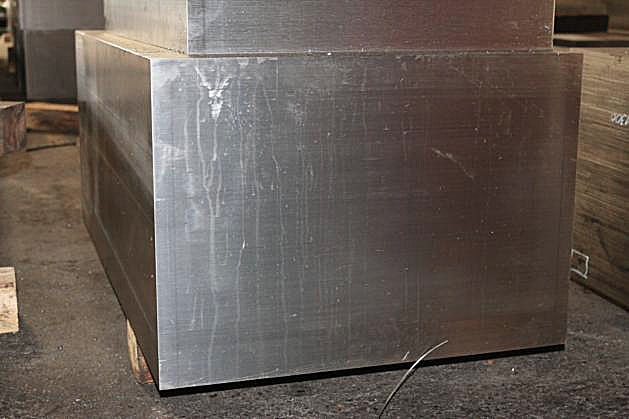

Flat, forged, tempered (268-315HBW)

Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting. Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.

This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Yoseli Gättner

Your contact person Yoseli Gättner+49 (0) 35263-665-19

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
