1.4024 (X15Cr13) Material Data Sheet

Back to category page

1.4024 (X15Cr13) directly from stock & cut to your required dimensions

International identifiers
AISI410-420, UNSS41000-S42000, JISSUS403, AFNORZ12C13
Scopes

Stainless martensitic chromium steel, which is treatable because of the higher C content to higher strength values. Resistant to water and steam.

Main applications: Construction parts which are in contact with water and steam, pump shafts, bolts, valve spindles, piston rods, turbine blades and similar parts.

Characteristics

Weldability:       possible under certain conditions

Machinability:   5 (1 = very bad - 10 = good)

Polishability:     yes

Corrosion class: 2 (0 = weak - 5 = good)



Calculate the weight of the required material quickly »

Chemical composition
1.4024
X15Cr13
CSiMnPSCrMoNiV
min.0,121,01,00,040,0312,0
max.0,17    14,0
In stock

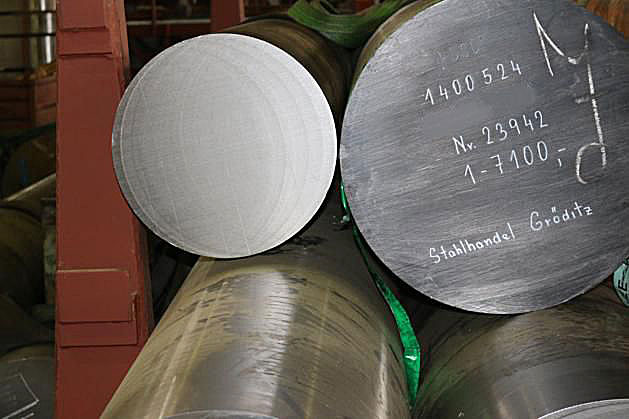

Round, forged, quenched and tempered, machined

Rundstahl

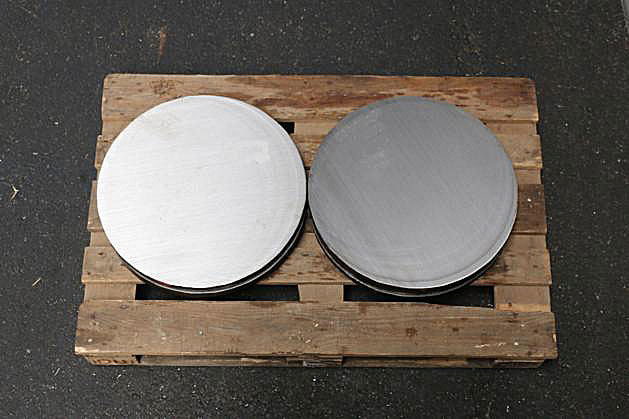

Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.

This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Heidi Sommer

Your contact person Heidi Sommer+49 (0) 35263-665-33+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
