What is 1.0571 (10222 - 4 | 06.17)
1.0566 TSTE 355 | 1.0571 (P355QH1) | 1.8868 (P355QL1) belongs to the fine grain steels and has a very good weldability and a good cold toughness. The 1.0566 TSTE 355 | 1.0571 (P355QH1) | 1.8868 (P355QL1) is recommended if high demands are made on notch impact strength and aging resistance.
International identifiers
Properties of the material 1.0571 (10222 - 4 | 06.17)
Properties
| Weldability | very good |
| Machinability | good |
| Toughness | good |
| Corrosion resistance | not corrosion resistant |
| Magnetizability | is present |
Mechanical properties
The minimum Yield strength is 275 - 460 MPa.
Physical properties
| Density in kg/dm3 | 7,85 |
Special properties
With a degree of deformation of 4.5, the TSTE 355 is resistant to brittle fracture.
Processing
| Cold forming | is possible |
| Hot forming | is possible |
Calculate the weight quickly and easily
Heat treatment 1.0571
- Can be processed using all common welding methods
- Welding possible both automatically and manually
- Preheating is generally not required
- At ambient temperatures below 5°C: preheating to approx. 150°C is recommended
Chemical composition of 1.0571
| TSTE 355 | C | Si | Mn | P | S | Cr | Mo | Ni | Al |
|---|---|---|---|---|---|---|---|---|---|
| min. | 0,90 | 0,02 | |||||||
| max. | 0,18 | 0,50 | 1,65 | 0,025 | 0,020 | 0,30 | 0,10 | 0,50 |
&nbs
| TSTE 355 | Cu | V | N | Nb | Ti |
|---|---|---|---|---|---|
| min. | |||||
| max. | 0,55 | 0,12 | 0,015 | 0,05 | 0,05 |
Areas of application for 1.0571
Instructions for use
- For applications with high requirements for mechanical properties
- For plant and equipment engineering
- For mechanical engineering
- For applications in the chemical and energy sectors
- For use in pressure vessel construction
Areas of application
- Steam boiler components
- Compressed gas vessels
- Pressure pipelines
- Plant and equipment engineering
- Mechanical engineering
- Chemical engineering
- Energy technology
Form of supply and availability of 1.0571
In stock
Immediately available from stock
Form of supply

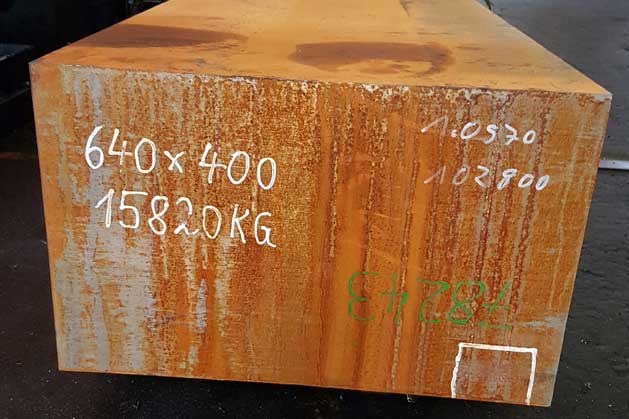

Flat steel, forged, tempered
Sawn blank
The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.
Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/TSTE_355.jpg "[Translate to Englisch:]")
Frequently asked questions about material 1.0571:
1.0571 is an unalloyed steel for pressure vessels and boilers.
The material is used in steam boiler and pressure vessel construction, for fittings, forgings and flanges, in chemical vessel construction, as well as in the petroleum industry.
The material can be welded very well using all common welding methods. Preheating is generally not required, but at temperatures below 5°C, preheating to approximately 150°C is recommended.
Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
