What is 1.6565 (40NiCrMo6)
The material 1.6565 is characterized by its high strength and toughness, making it suitable for particularly demanding components. Its excellent mechanical properties ensure reliable performance even under high loads.
1.6565 is classified as AISI 4340
International identifiers
Properties of the material 1.6565 (40NiCrMo6)
Special properties
1.6565 - only limited welding is possible
machinability: 5 (1 = low - 10 = good)
Calculate the weight quickly and easily
Heat treatment 1.6565
Chemical composition of 1.6565
| 1.6565 40NiCrMo6 | C | Si | Mn | P | S | Cr | Mo | Ni | V |
|---|---|---|---|---|---|---|---|---|---|
| min. | 0,35 | 0,15 | 0,5 | 0,9 | 0,2 | 1,4 | |||
| max. | 0,45 | 0,35 | 0,7 | 0,035 | 0,035 | 1,40 | 0,3 | 1,7 |
Areas of application for 1.6565
Instructions for use
- For highly stressed components with high strength and toughness requirements
- Suitable for components exposed to high mechanical loads
- Particularly suitable for safety-critical constructions and dynamic loads
- For use in mechanical engineering, automotive engineering and the aerospace industry
Areas of application
- Mechanical engineering
- Automotive engineering
- Aerospace industry
- Highly stressed shafts and axles
- Gears and gearbox components
- Highly stressed fasteners
- Safety-critical components with high strength requirements
Form of supply and availability of 1.6565
In stock
Immediately available from stock
Form of supply

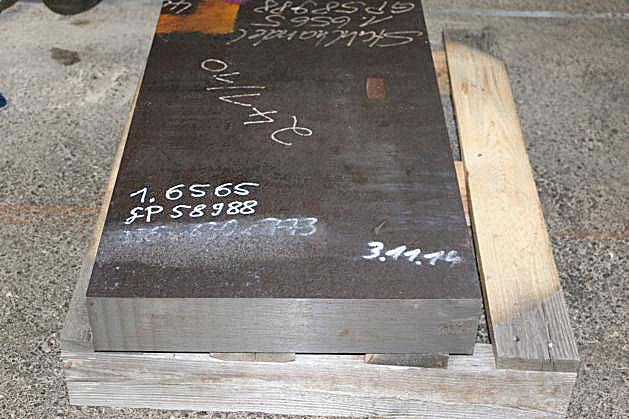

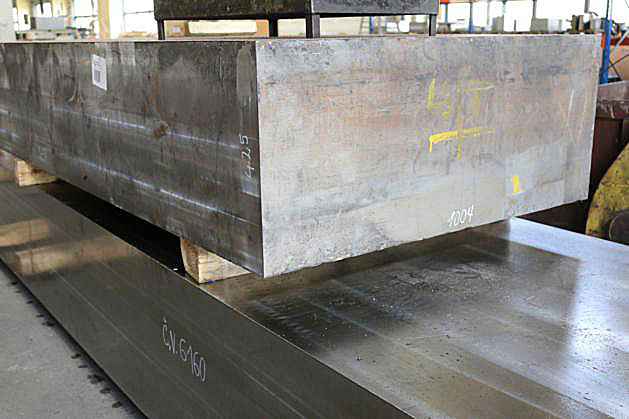

Flat, forged, annealed
Sawn blank
The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.
Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/1.6565_Flachstahl.jpg "[Translate to Englisch:]")
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/1.6565_Stahlblock.jpg "[Translate to Englisch:]")
Frequently asked questions about material 1.6565:
It is a highly alloyed quenched and tempered steel with excellent toughness, optimized for components subjected to extreme dynamic loads.
Primarily in heavy mechanical engineering, automotive engineering and the aerospace industry for highly stressed components.
No, it is only conditionally weldable and requires precise preheating and post-weld heat treatment.
Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
