What is 1.6511 (36CrNiMo4)
Material 1.6511 is a quenched and tempered steel with high strength, good toughness and excellent hardenability. It is characterized by its reliable mechanical properties and is suitable for components with high requirements for load-bearing capacity and wear resistance.
1.6511 is classified under AISI 4340.
International identifiers
Properties of the material 1.6511 (36CrNiMo4)
Special properties
quenched and tempered
Calculate the weight quickly and easily
Heat treatment 1.6511
Chemical composition of 1.6511
| 1.6511 36CrNiMo4 | C | Si | Mn | P | S | Cr | Mo | Ni | V |
|---|---|---|---|---|---|---|---|---|---|
| min. | 0,32 | 0,5 | 0,9 | 0,15 | 0,9 | ||||
| max. | 0,40 | 0,4 | 0,8 | 0,035 | 0,035 | 1,2 | 0,30 | 1,2 |
Areas of application for 1.6511
Instructions for use
- For highly stressed components with high strength and toughness requirements
- Suitable for components exposed to high mechanical loads
- Good hardenability and reliable mechanical properties
- Particularly suitable for dynamic loads and high wear resistance requirements
- For components requiring high load-bearing capacity and a long service life
Areas of application
- Mechanical engineering
- Automotive engineering
- Drive technology
- Shafts and axles
- Gears and gearbox components
- Pins and highly stressed fasteners
- Components subjected to high mechanical loads
Form of supply and availability of 1.6511
In stock
Immediately available from stock
Form of supply

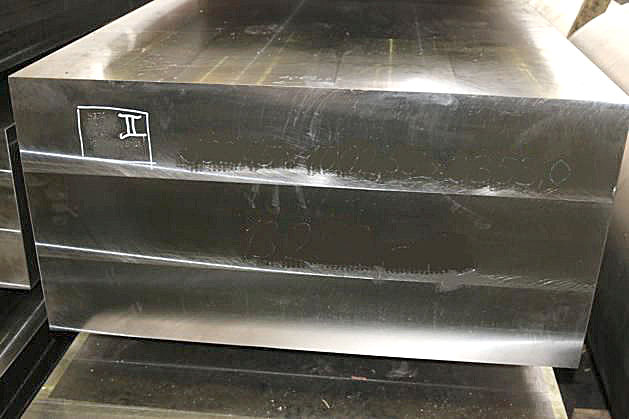

Flat, forged, quenched and tempered

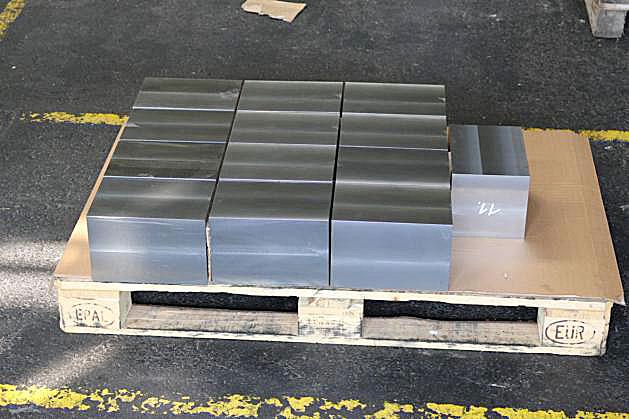

Sawn blank
The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.
Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/1.6511_Stahlzuschnitt.jpg "[Translate to Englisch:]")
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/1.6511_Flachstahl.jpg "[Translate to Englisch:]")
Frequently asked questions about material 1.6511:
Due to its chromium-nickel-molybdenum alloy, it offers very high strength (900–1200 N/mm²) and excellent through-hardening properties.
Highly stressed parts such as crankshafts, gearbox gears, axles and high-strength bolts.
It has good hot strength, allowing it to maintain its mechanical properties even under thermal stress.
Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
