What is 1.2343 (X37CrMoV5-1)
1.2343 hot work tool steel with high temperature strength and wear resistance with high thermal shock resistance. Plastic molds, die-casting and extrusion tools for light metal. Good toughness and thermal conductivity. Material 1.2343 is also available in ESR quality: 1.2343 ESR
International identifiers
Properties of the material 1.2343 (X37CrMoV5-1)
Properties
| Weldability | poor |
| Toughness | excellent |
| Hot strength | high |
| Thermal fatigue resistance | very good |
| Polishability | excellent |
| Machinability | 5 (1 = poor - 10 = good) |
Mechanical properties
| Hardness | annealed max. 229 HB |
Calculate the weight quickly and easily
Heat treatment 1.2343
| Temperature in °C | Cooling | |
| Soft Annealing (+A) | 750 – 800 | Furnace |
| Stress Relief Annealing | 600 – 650 | Furnace |
| Hardening | 1000 – 1030 | Air, N₂, oil, hot bath (500-550 °C) |
Chemical composition of 1.2343
| 1.2343 X37CrMoV5-1 | C | Si | Mn | P | S | Cr | Mo | Ni | V |
|---|---|---|---|---|---|---|---|---|---|
| min. | 0,33 | 0,8 | 0,25 | 4,8 | 1,1 | 0,3 | |||
| max. | 0,41 | 1,2 | 0,50 | 5,5 | 1,5 | 0,5 |
Areas of application for 1.2343
Instructions for use
- When good toughness and thermal conductivity are required.
- For tools exposed to high thermal and mechanical stresses.
- For applications in hot forming and die casting.
Areas of application
- Plastic moulds
- Die-casting tools for light metals
- Extrusion tools for light metals
- Forging dies and forging tools
- Hot-shear blades
- Hot extrusion tools
- Piercing mandrels
- Screw manufacturing tools
- Bolts
- Ejectors
Form of supply and availability of 1.2343
In stock
Immediately available from stock
Form of supply
Flat, forged, annealed
Round, forged, annealed

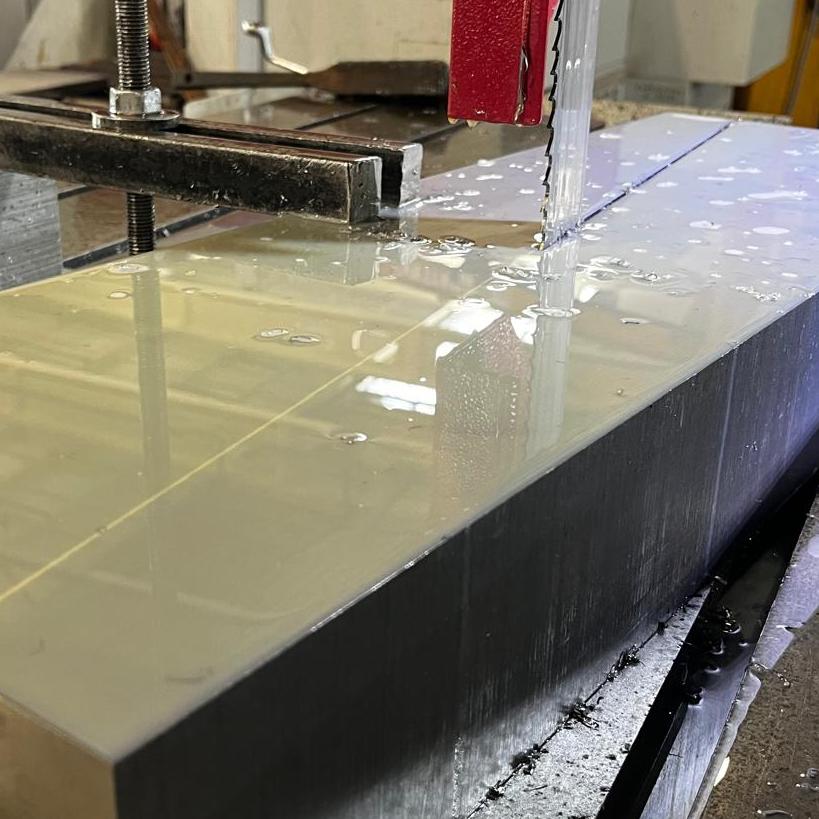

Sawn blank
The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.
Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.
Frequently asked questions about material 1.2343:
The material is very well suited for electrical discharge machining (EDM), nitriding (gas or bath nitriding to improve wear resistance), etching and polishing.
Weldability is rather poor. Due to the risk of cracking in tool steels, the strict guidelines of the welding consumable manufacturers must be followed.
In the annealed delivery condition, the hardness is a maximum of 229 HB. After hardening and tempering, hardness values of approximately 48 to 54 HRC can be achieved, depending on the heat treatment conditions.
ESR stands for Electroslag Remelting. This grade offers even higher purity, greater homogeneity and improved impact toughness, making it suitable for intricate tools.
Typical applications include die-casting moulds for light metals, extrusion dies and punches, forging dies, plastic moulds and hot shear blades.
Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
