Stock
Back to category page

1.2311 (40CrMnMo7) directly from stock & cut to your required dimensions!

International identifiers
AISI P20
Scopes

Standard plastic mold steel for plastic- and die casting-molds with medium dimensions up to cross-sections of approximately 400 mm.
Also for Jigs, base plates, extrusion presses, die inserts, die holders and parts for general machine construction.

Characteristics

Weldability:      bad

Machinability:  6 (1 = very bad - 10 = good)

Polishability:    no

Corrosion class:   2 (0 = weak - 5 = good)



Calculate the weight of the required material quickly »

Chemical composition
1.2311
40CrMnMo7
CSiMnPSCrMoNiV
min.0,350,201,3  1,80,15
max.0,450,401,6  2,10,25
In stock

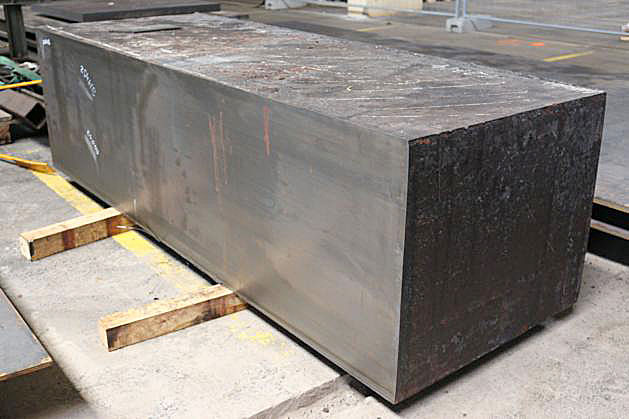

Flat, forged, quenched and tempered

Stahlblock
Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Andreas Blachowiak

Your contact person Andreas Blachowiak+49 (0) 35263-665-37+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
