1.7335 (13CrMo4-5) Material Data Sheet

Back to category page

1.7335 (13CrMo4-5) directly from stock & cut to your required dimensions!

International identifiers
ASTM A182, A182(F12), A30122, SS7335, STPA20, STBA20, STFA22, 15HM, B.S. 620-440, AFNOR 15CD4.05
Scopes

13CrMo4-5 is a heat-resistant special structural steel. It is mainly used in boiler and apparatus construction. The material is suitable for temperatures up to 550°C.

Characteristics

13CrMo4-5 can be welded without problems. There is no special heat treatment required.


Calculate the weight of the required material quickly »

Chemical composition
13CrMo4-5
1.7335
CSiMnPSCrMoNiV
min.0,08   0,40  0,700,40
max.0,180,351,000,0250,011,150,60
13CrMo4-5
1.7335
AlCuNNbTiSonstiges
min.
max.      0,30 0,012
In stock

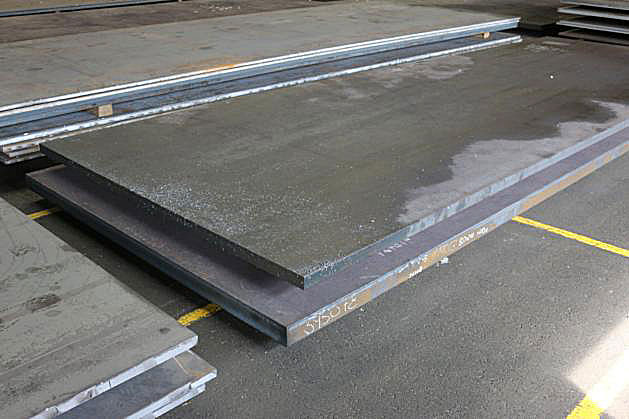

plates, rolled, normalized and tempered

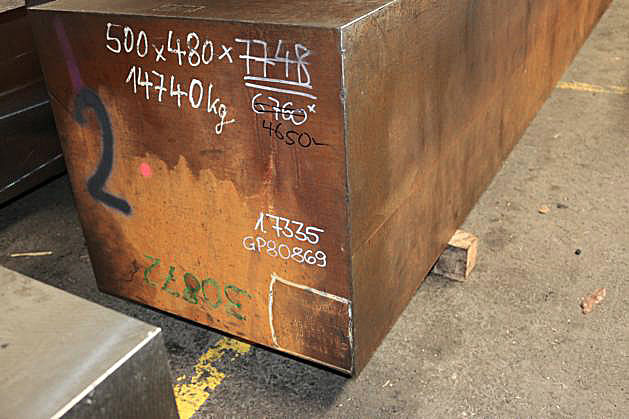

flat, forged, quenched and tempered
round bars, forged, quenched and tempered

StahlblechStahlblockRundstahl
Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Andreas Blachowiak

Your contact person Andreas Blachowiak+49 (0) 35263-665-37+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
