AISI 4330V mod. 1.6932 mod. Datasheet

Back to category page

AISI 4330V mod. 1.6932 mod. directly from stock & cut to your required dimensions!

International identifiers
AISI 4330V mod., ASTM A646/A646M-06(2011)
Scopes

AISI 4330V mod. - 1.6932 mod. can be used as a universal quenched and tempered steel in many applications. There is the advantage in high toughness (in deep temperatures also) together increased strength properties. It gets these great properties by Vanadium alloyed modification. The largest amounts of these steel grades are used in Mechanical Engineering (high-strength structures) and is widely used in the oil and gas sector.

Characteristics

Weldability:
AISI 4330V mod. is not suitable for welding constructions, because the welding technology is very special and complicate. If welding is needed, a pre-heating at near 400°C and a post weld heat treating (PWTH) at 600°C is recommended, better is quench and temper anew.


Mechanical Properties:
up to wall thickness 550 mm according to 3.1 inspection certificate:

Hardness:270-310 HBW
0,2 %-Yield strength:690 MPa
Tensile Strength:> 865 MPa
Reduction in area (longitudinal):min. 18 %
Impact test (ISO-V) trans:min. 60 J bei -40°C


Calculate the weight of the required material quickly »

Chemical composition
AISI 4330V mod.

CSiMnPSCrMo
min.0,28 0,80--0,900,35
max.0,320,401,000,0200,0101,200,55
AISI 4330V mod.NiVAlCuTi
min.1,800,06   -     -
max.2,100,14   - 0,20   -
In stock

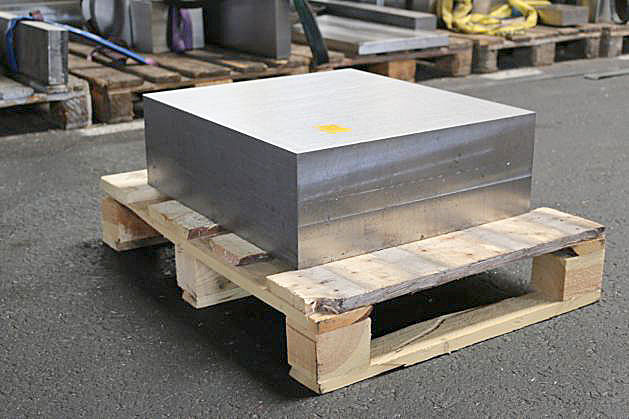

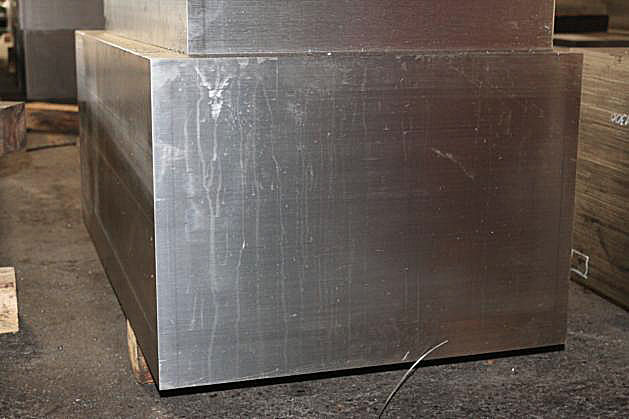

Forged flat material, quenched and tempered, pre machined

Stahlblock
Advantages of saw cut

The machining by our saws is a mechanical step of processing of this material products, which results in a significantly lower unintended deformation and increased hardness for the existing  structure, such as the thermal cutting. This approach allows finishing of the workpiece by milling or drilling, immediately. So it isn´t necessary to anneal the material or make any similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Andreas Blachowiak

Your contact person Andreas Blachowiak+49 (0) 35263-665-37+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
