1.3505 (100Cr6) Material Data Sheet

What is 1.3505 (100Cr6)

1.3505 is a high-quality bearing steel with high hardness, excellent wear resistance and good fatigue strength. The material is particularly suitable for highly stressed components such as rolling bearings, rollers, bushings and precision parts. Its high hardenability and dimensional stability ensure reliable performance even under high mechanical loads.

International identifiers

AISI 52100, ŁH15, B.S. 535A99, AFNOR 100C6

Properties of the material 1.3505 (100Cr6)

Properties

1.3505 soft-annealed

Machinability: 5 (1 = badt - 10 = good)

Calculate the weight quickly and easily

Heat treatment 1.3505

Chemical composition of 1.3505

1.3505
100Cr6		CSiMnPSCrMoNiV
min.0,930,150,25  1,35
max.1,050,350,450,0250,021,600,1

Areas of application for 1.3505

Hinweise zum Einsatz

  • Geeignet für stark verschleißbeanspruchte Bauteile
  • Besonders bei hohen Anforderungen an Härte und Verschleißfestigkeit
  • Für Messer und Werkzeuge geeignet

Anwendungsbereiche

  • Maschinenbau
  • Fahrzeugbau
  • Lagertechnik
  • Herstellung von Messern und Werkzeugen

Form of supply and availability of 1.3505

In stock

Immediately available from stock.

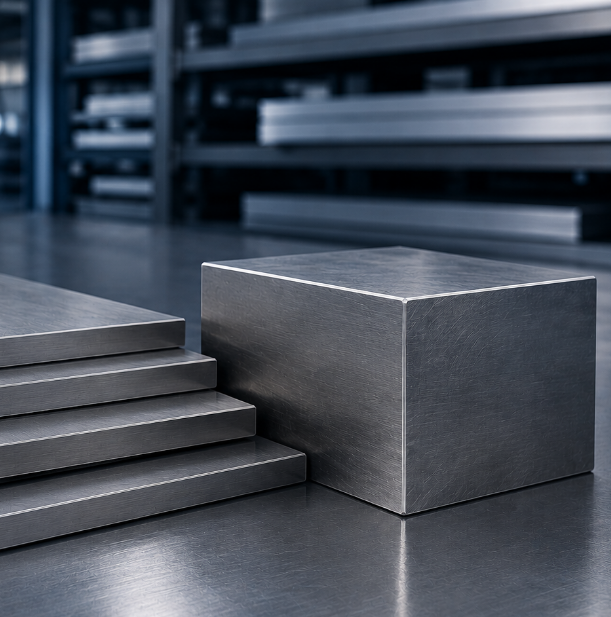

Form of supply

flatsteel, forged, soft-annelaed

Stahlblock

Sawn blank

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

[Translate to Englisch:]
[Translate to Englisch:]

Frequently asked questions about material 1.3505:

Thanks to its approximately 1% carbon and 1.5% chromium content, 1.3505 offers excellent wear resistance.

Yes, the steel has ferromagnetic properties in both the unhardened and hardened condition.

Yes, 100Cr6 is not stainless and belongs to the group of classic unalloyed or low-alloy bearing steels.

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
