1.2767 (45NiCrMo16 | X45NiCrMo4) directly from stock & cut to your required dimensions.

International identifiers
45NiCrMo16, X45NiCrMo4, AFNOR 435 NCD 5, NPW
Scopes

The nickel cold steel ( 45NiCrMo16 ) has a high strength, good hardenability and high impact strength and compressive strength . Working hardness 52-55 HRC . Well polishable and erodible.

The tool steel 1.2767 is suitable for the following applications : cutlery dies , embossing dies , solid embossing matrixes (shims) and stamps, bending tools, pressure pads on press brakes, shear blades for thick sliced, plastic molds, reinforcements.

Characteristics

soft-annealed max. 262

Machinability: 4 (1 = bad - 10 = good)



Calculate the weight of the required material quickly »

Chemical composition
1.2767
45NiCrMo16
X45NiCrMo4
CSiMnPSCrMoNiV
min.0,40,10,15  1,20,153,8
max.0,50,40,450,0250,021,50,354,30,15
1.2767
45NiCrMo16
X45NiCrMo4
AlCuNNbTiW
min.
max.0,030,25         0,15

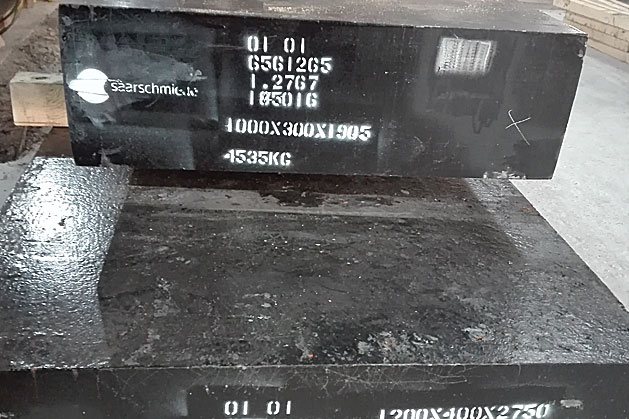

In stock

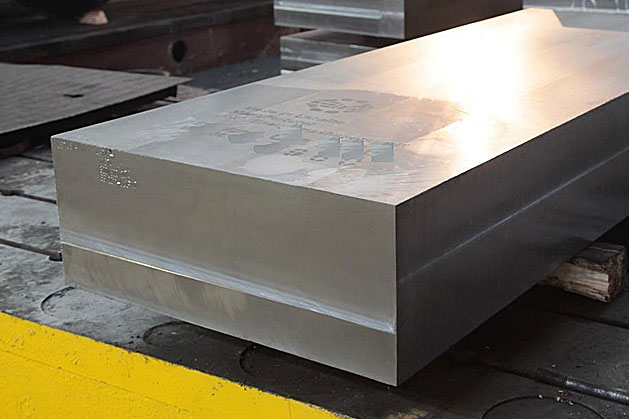

flat, forged, soft-annealed

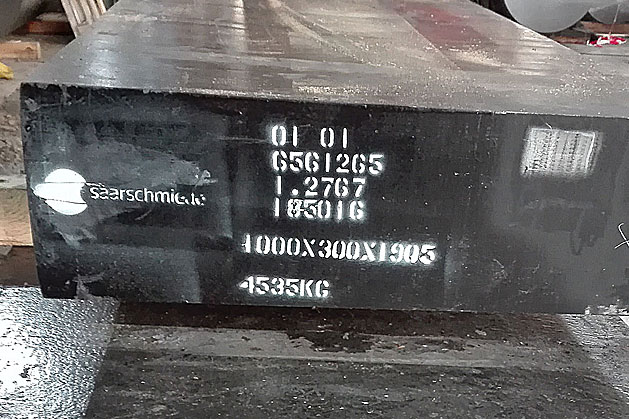

Stahlblock
Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.

This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Andreas Blachowiak

Your contact person Andreas Blachowiak+49 (0) 35263-665-37+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
