What is 1.2510 (100MnCrW4)
1.2510 is a cold-work tool steel and one of the most widely used tool steels worldwide. It is oil hardenable. Its excellent properties include high hardness after heat treatment, high dimensional stability, good edge retention and good toughness. Working hardness: 57–62 HRC.
Due to its properties, grade 1.2510 is comparable to grade 1.2842. However, the additional alloying element tungsten makes 1.2510 even more wear-resistant.
International identifiers
Properties of the material 1.2510 (100MnCrW4)
Properties
soft-annealed max. 229 HB
Machinability: 5 (1 = bad - 10 = good)
Weldability: bad
Corrosion class: 1 (0 = low - 5 = good
Physical properties
| Thermal conductivity at °C | 20 | 350 | 700 |
| W/(m•K) | 33,5 | 32,0 | 30,9 |
Calculate the weight quickly and easily
Heat treatment 1.2510
| Temperature in °C | Cooling | |
| Heat treatment | ||
| Soft annealing | 740-770 | Furnace |
| Stress relieving | app. 650 | Furnace |
| Hardening | 780-820 | Oil or warm bath, 180-220° |
| Tempering °C | 100 | 200 | 300 | 400 |
| HRC | 64 | 62 | 57 | 53 |
Chemical composition of 1.2510
| 1.2510 100MnCrW4 | C | Si | Mn | P | S | Cr | Mo | W | V |
|---|---|---|---|---|---|---|---|---|---|
| min. | 0,90 | 0,15 | 1,0 | 0,5 | 0,5 | 0,05 | |||
| max. | 1,05 | 0,35 | 1,2 | 0,035 | 0,035 | 0,7 | 0,7 | 0,15 |
Areas of application for 1.2510
Instructions for use
- Suitable for applications requiring high wear resistance and good edge retention.
- Particularly suitable for tools and components subject to high mechanical loads.
- Can be used for cutting and punching applications involving sheet metal up to approx. 6 mm thick.
- Proven for precision tools, gauges and guide elements.
Areas of application
- Plastic moulds and mould inserts
- Machine and shear blades
- Cutting and punching tools for sheet thicknesses up to approx. 6 mm
- Thread cutting dies and thread cutting tools
- Woodworking tools
- Fixtures and guide rails
- Dies and gauges
Form of supply and availability of 1.2510
In stock
Available for immediate delivery from stock
Form of supply
flat, forged, soft-annelaed

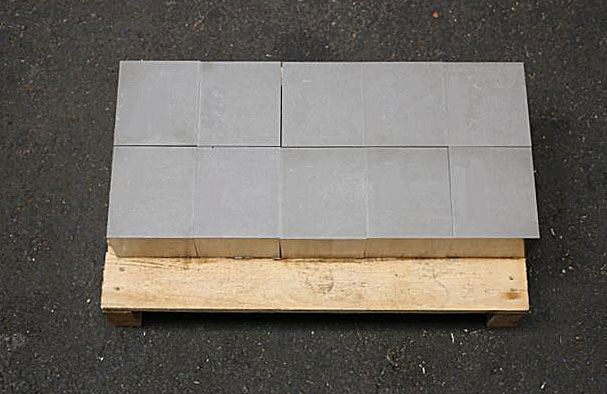

Sawn blank
The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.
Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/1.2510_Stahlzuschnitt.jpg "[Translate to Englisch:]")
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/1.2510_Saegezuschnitt_neu.jpg "[Translate to Englisch:]")
Frequently asked questions about material 1.2510:
No. Due to its relatively low chromium content of less than 1%, the steel does not form passive corrosion protection and is prone to corrosion without proper care.
The two steels are almost equivalent in their basic properties. However, 1.2510 contains the additional alloying element tungsten, which makes it more resistant to abrasion and wear than 1.2842.
It is a proven, medium-alloyed cold-work tool steel.
Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
