1.2344 (X40CrMoV5-1) Material Data Sheet

What is 1.2344 (X40CrMoV5-1)

Hot work tool steel with high temperature strength and wear resistance (higher than 1.2343) with high thermal shock resistance.
Plastic molds, die-casting and extrusion tools for light metal. Good toughness and thermal conductivity.

International identifiers

AISI H13, SS2242, WCLV, B.S. BH13, AFNOR Z40CDV

Properties of the material 1.2344 (X40CrMoV5-1)

Properties

  • Cr-Mo-V alloyed hot-work tool steel with an extra-fine structure (EFS)
  • Very good hot-wear resistance
  • Very high hot strength
  • Very high toughness
  • Excellent resistance to thermal cycling

Calculate the weight quickly and easily

Heat treatment 1.2344

 Temperature in °CCoolingHardness
Soft Annealing (+A)750 – 800 Furnacemax. 229 HB
Hardening1010 – 1030Air, oil, hot bath  (500-550 °C)54 HRC (after quenching)

Chemical composition of 1.2344

1.2344
X40CrMoV5-1
CSiMnPSCrMoNiV
min.0,350,80,25  4,81,2   0,85
max.0,421,20,50  5,51,5   1,15

Areas of application for 1.2344

Instructions for use

  • Good toughness and thermal conductivity
  • Suitable for hot-work applications
  • Suitable for manufacturing tools used in metal forming and processing

Areas of application

  • Plastic moulds
  • Die-casting and extrusion tools for light metals
  • Forging dies and forging tools
  • Hot shear blades
  • Hot extrusion tools
  • Piercing mandrels and pressing mandrels
  • Press dies
  • Tools for bolt production
  • Bolts and ejector pins

Form of supply and availability of 1.2344

In stock

Immediately available from stock

Form of supply

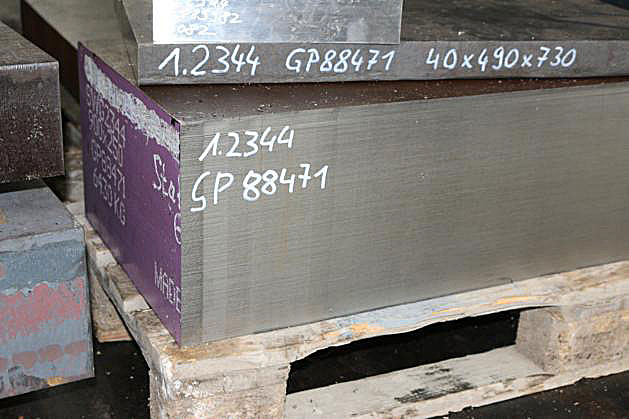

Flat, forged, annealed

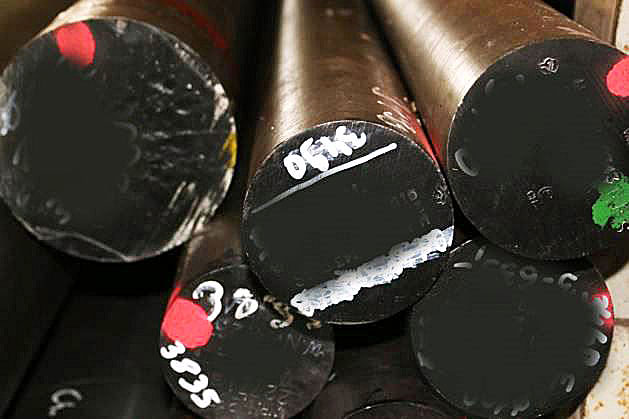

Round, forged, annealed

StahlblockRundstahl

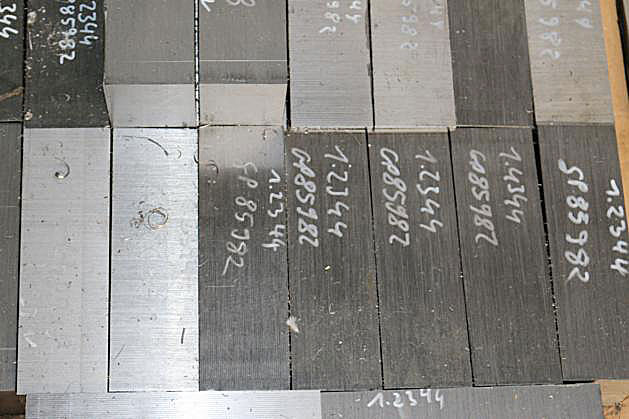

Sawn blank

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.

This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Frequently asked questions about material 1.2344:

  • Delivery condition (annealed): max. 229 HBW (approx. 215–230 HB).
  • Operating hardness (hot-work applications): approx. 44 to 47 HRC.
  • Operating hardness (plastic injection moulding): approx. 48 to 53 HRC.
  • Maximum achievable hardness: up to approx. 56 HRC.

1.2343 (X37CrMoV5-1) has a slightly lower carbon and vanadium content.

1.2344 offers higher hot strength and better wear resistance, while 1.2343 can offer advantages in toughness under certain impact loads.

No. Despite its chromium content of around 5%, it is not classified as stainless steel (which requires at least 10.5% chromium). It is susceptible to corrosion and requires adequate corrosion protection during machining, for example during wire EDM.

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
