1.0764 (36SMn14) Material data sheet
Hydraulic Blocks Made from Material 1.0764 (HC420LA)
What is 1.0764 / HC420LA?
HC420LA (1.0764) is a high-strength, cold-rolled strip steel known for its excellent formability and mechanical performance. It is commonly used for load-bearing components, particularly where high yield strength and dimensional accuracy are essential.
| 1.0764 36SMn14 | C | Si | Mn | P | S | Cr | Mo | Ni | V |
|---|---|---|---|---|---|---|---|---|---|
| min. | 0,33 | 0,21 | 1,42 | 0,022 | 0,135 | 0,11 | |||
| max. | 0,35 | 0,24 | 1,46 | 0,023 | 0,138 | 0,18 |
| 1.0764 36SMn14 | Al | Cu | N | Nb | Ti | Sonstiges |
|---|---|---|---|---|---|---|
| min. | 0,11 | |||||
| max. | 0,12 |
available on request

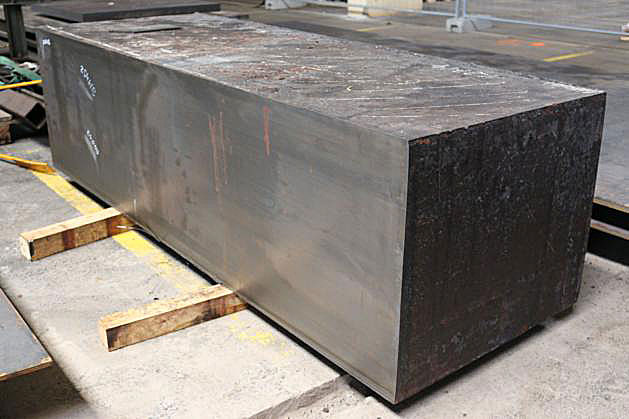

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.
Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.
Do you have any questions?
We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.
Your contact person Andreas Blachowiak+49 (0) 35263-665-37blachowiak@stahlportal.com
Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
