1.0460 (P250GH) Material Data Sheet

Back to category page

1.0460 (P250GH) directly from stock & cut to your required dimensions!

International identifiers
ASTM A105, SS2230, 1H13, C22.8
Scopes

P250GH a heat resistant steel, which is suitable for temperatures up to approx. 480°C. It is mainly used in valve construction such as for manufacture of flanges and couplings.

EU material from stock.

Characteristics

P250GH exhibits good weldability .
There is no special heat treatment required.



Calculate the weight of the required material quickly »

Chemical composition
1.0460
P250GH
CSiMnPSCrMoNiV
min.0,18 0,3
max.0,200,40,9
1.0460
P250GH
AlCuNNbTiSonstiges
min.0,015             Cr+Cu+Mo+Ni
max.0,05  0,3 0,0120,020,03   max. 0,7

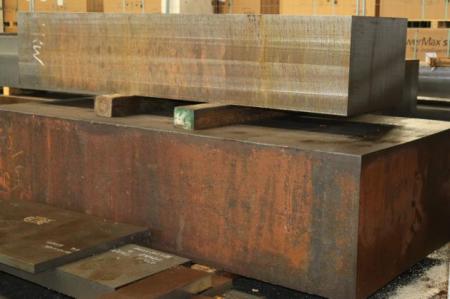

In stock

rolled plate,
flat, forged

Stahlblech
Advantages of saw cut

The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.

Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.

This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.

Do you have any questions?

We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.

Andreas Blachowiak

Your contact person Andreas Blachowiak+49 (0) 35263-665-37+49 (0) 35263-665-35

contact now

Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
